Cast Steel Floating Ball Valve

Compact, Cost-Effective Solution for Medium Pressure Applications

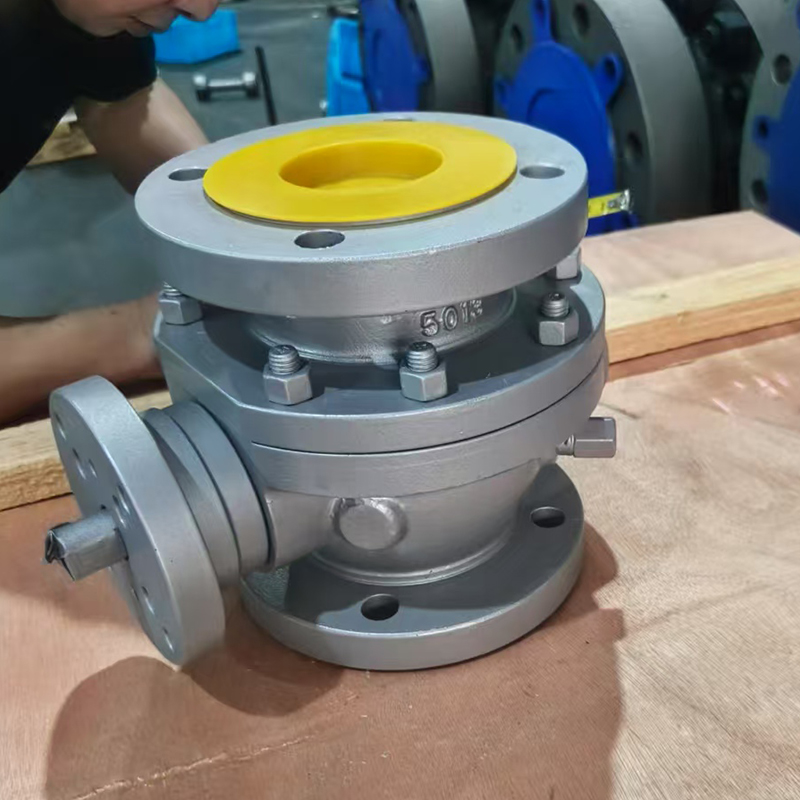

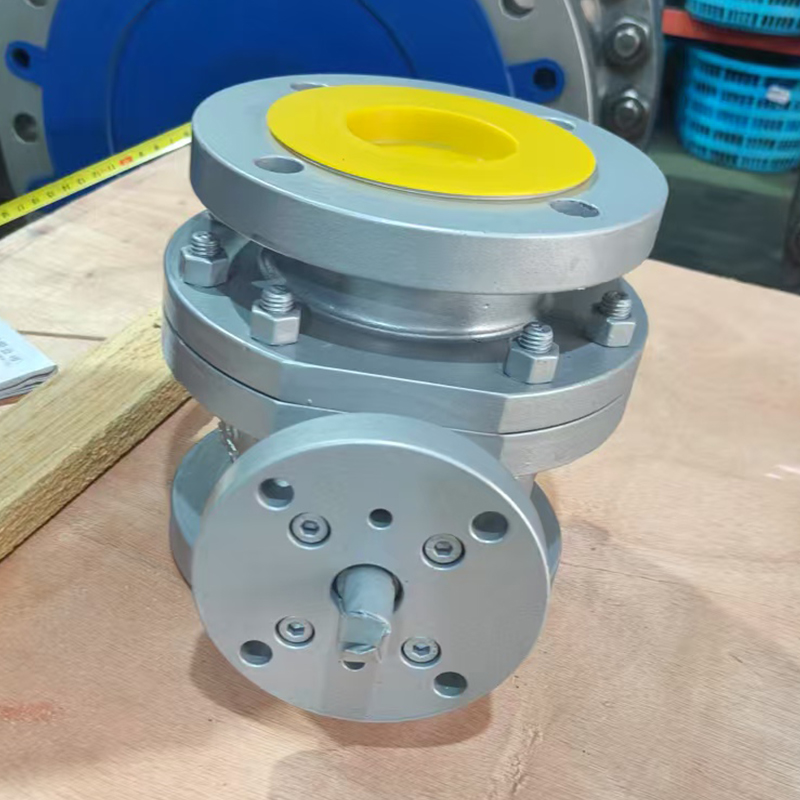

The Cast Steel Floating Ball Valve is a cost-effective and high-performance solution designed for shut-off applications in low to medium pressure pipelines. The valve body is made from good quality cast steel, offering strong mechanical properties and enhanced resistance to corrosion, erosion, and pressure fatigue. This material selection ensures a long service life and consistent performance in both moderate and harsh service conditions. With a floating ball mechanism that relies on downstream seat pressure for sealing, this valve provides dependable isolation in compact installations. Its simplicity and versatility make it a preferred option for both OEM equipment integration and utility service in various industries.

Who This Product Is For:

User	User Profile	Key Priorities
Plant Maintenance Manager	Oversees standard fluid systems with regular maintenance routines	Simple Structure, Easy Replacement, Leak Prevention
Procurement Engineer	Manages sourcing for mid-sized or budget-sensitive projects	Competitive Pricing, Quick Delivery, International Standards
Automation Engineer	Works on light-to-medium automation tasks	Low Torque, Manual/Electric/Pneumatic Compatibility
OEM Manufacturer	Integrates valves into packaged units or skid systems	Compact Size, Modular Fit, Scalable Production

Key Features & Benefits:

Floating Ball Design
The ball is held in place by the valve seats, allowing it to "float" slightly downstream to ensure tight sealing with medium pressure.

Tight Shut-Off
When pressure is applied, the floating ball presses against the downstream seat to achieve a bubble-tight seal.

Simple, Compact Construction
Fewer components = easy maintenance, cost-efficient replacement, and lower inventory pressure.

Wide Compatibility with Actuators
Can be manually operated or integrated with electric or pneumatic actuators for automated systems.

Broad Material Options
Available in stainless steel, carbon steel, brass, PVC, etc., to suit various working media.

Fire-Safe & Anti-Static Design (Optional)
Enhanced safety for gas and flammable fluid systems.

Technical Specifications

Parameter	Range
Size	½” to 12” (DN15–DN300)
Pressure Rating	Class 150 ~ 600 / PN10 ~ PN100
Temperature	-29°C to 200°C (depending on material)
Connection Types	Threaded / Flanged / Welded / Socket / Wafer
Body Materials	SS304, SS316, WCB, Brass, PVC, etc.
Seat Materials	PTFE, RPTFE, PEEK, Metal-to-Metal

Product Code Example

FBV-FL-150LB-SS316-2IN
(Floating Ball Valve, Class 150, SS316, 2 Inch, Flanged Ends)

Typical Applications：

Oil & Gas Distribution – Flow isolation in upstream and midstream pipelines

Chemical & Water Systems – Clean fluid transfer, general shut-off

HVAC & Automation – Flow balancing in building or industrial systems

OEM Equipment – Integrated into skids, pumps, or compact valve stations

General Industry – Ideal for process systems, air, water, gas lines

Why Choose Our Floating Ball Valves?
Exported to 40+ countries with full API, ISO, CE certifications
Flexible production: OEM/ODM support, fast sample delivery
Full technical documentation, 3D models, and after-sales assistance
Trusted by OEMs, integrators, and mid-sized industrial operators

Ready to Specify Your Valve?
Request a Custom Quote Within 24 Hours
