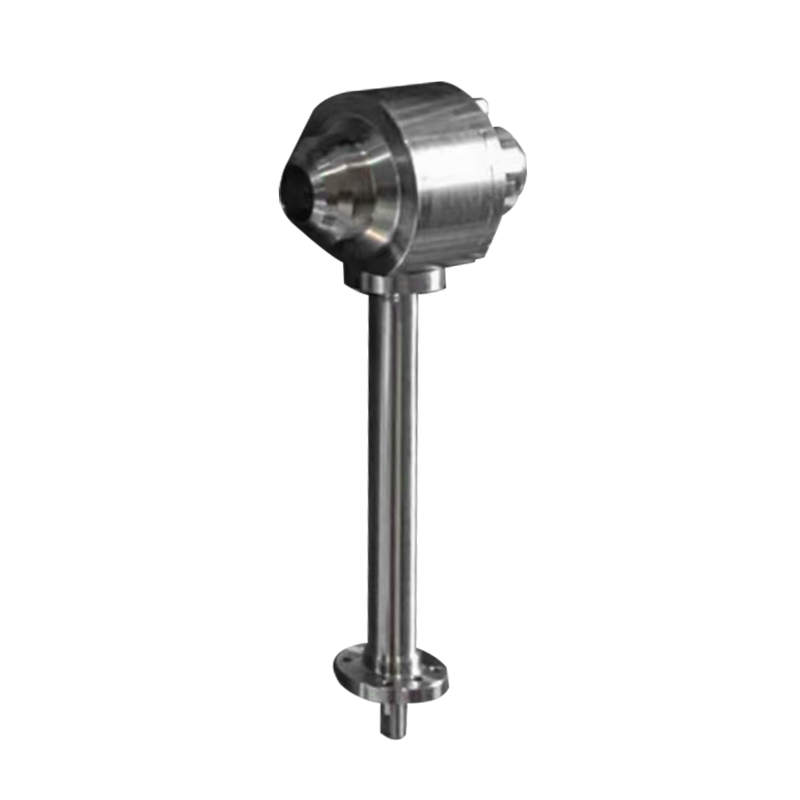

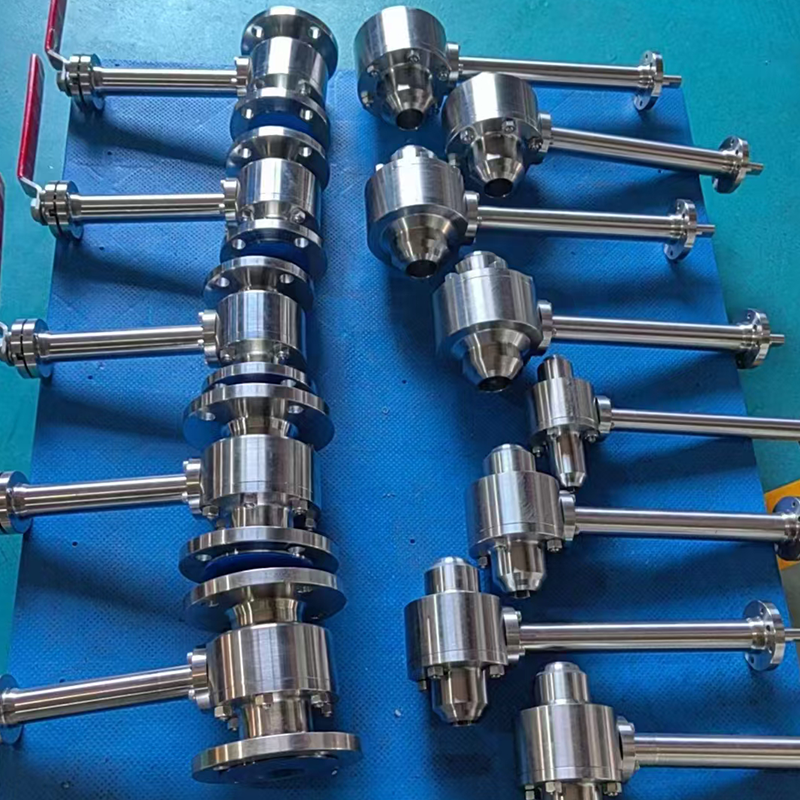

The Stainless Steel Cryogenic Ball Valve is specially engineered to operate safely and reliably in ultra-low temperature environments down to -196°C, typically found in LNG, liquid nitrogen, liquid oxygen, ethylene, and cryogenic gas applications. The primary material used in the construction of stainless steel cryogenic ball valves is high-grade stainless steel. This material is chosen for its exceptional resistance to corrosion and its ability to maintain structural integrity at extremely low temperatures. The stainless steel body ensures that the valve can withstand the harsh conditions often found in cryogenic environments without degrading over time. Featuring an extended stem design (cryogenic bonnet), anti-leakage sealing systems, and precision-machined seats, this valve ensures consistent shut-off, low torque operation, and full thermal isolation between the actuator and cryogenic media.
Who Uses Cryogenic Valves?
| User | User Profile | Key Priorities |
| LNG Plant Engineer | Operates liquefaction and vaporization systems | Leak-Proof Design, Thermal Stability |
| Gas Equipment OEM | Integrates valves into cryogenic tanks and skids | Compact Structure, Certifiable Quality |
| Procurement for Energy Projects | Buys components for storage, transfer and distribution | Cryo-Tested, Compliant with International Standards |
| Scientific/Medical Facility Manager | Handles storage of LOX, LIN, LHe | Safety, Low Emission, Vacuum Compatibility |
Key Features & Benefits:
Low-Temperature Service (-196°C / -321°F)
Materials and sealing structure designed to withstand extreme cold.
Extended Bonnet Design
Isolates stem packing from cryogenic fluid, reducing thermal shock and frost damage.
Blowout-Proof Stem & Anti-Static Device
Ensures safety under sudden pressure surges and low-temperature flow.
Bubble-Tight Shutoff
Seals effectively even at cryogenic temperatures to prevent costly leaks.
100% Cryogenic Testing
Valves are tested in accordance with BS 6364 / ISO 28921 to simulate real-world low-temperature conditions.
Actuation-Ready
Compatible with pneumatic, electric, and manual operators.
Technical Specifications
| Parameter | Specification |
| Size Range | ½” ~ 24” (DN15 ~ DN600) |
| Pressure Rating | Class 150 ~ 900 / PN16 ~ PN160 |
| Temperature Range | -196°C to +80°C |
| Body Materials | SS304 / SS316 / CF8M / Duplex / Aluminum Bronze |
| Seat Materials | PTFE, PCTFE, PEEK, Metal Seat (Optional) |
| Connection Type | Flanged, Butt Weld, Socket Weld, Threaded |
| Standards | API 6D, BS 6364, ISO 28921, ASME B16.34, CE, SIL |
Sample Product Code
CBV-CL300-EXTBONNET-SS316-6IN
(Cryogenic Ball Valve, Class 300, Extended Bonnet, SS316, 6 Inch)
Application Scenarios：
LNG Plants & Terminals – Liquefaction lines, storage tanks, vaporizer units
Air Separation Units (ASU) – LIN, LOX, LAR production & transport
Hydrogen & Helium Systems – Scientific labs, aerospace fuel handling
Cryogenic Transportation – Skid systems, vacuum insulated pipelines
Medical Gas Storage – Hospital-grade oxygen and nitrogen systems
Why Choose Our Cryogenic Ball Valves?
Designed for Ultra-Low Temperatures
Each valve is thermally treated and assembled in a clean room for cryogenic use.
Global Trust
Widely used in LNG stations, ASUs, and cryogenic transportation projects in Europe, Southeast Asia, and the Middle East.
Reliable Delivery & Engineering Support
We provide 3D drawings, FAT, MTC, cryo-test reports, and customized actuation options.
