What is a floating ball valve?
A floating ball valve is a valve in which the ball can float. Under the action of medium pressure, t...

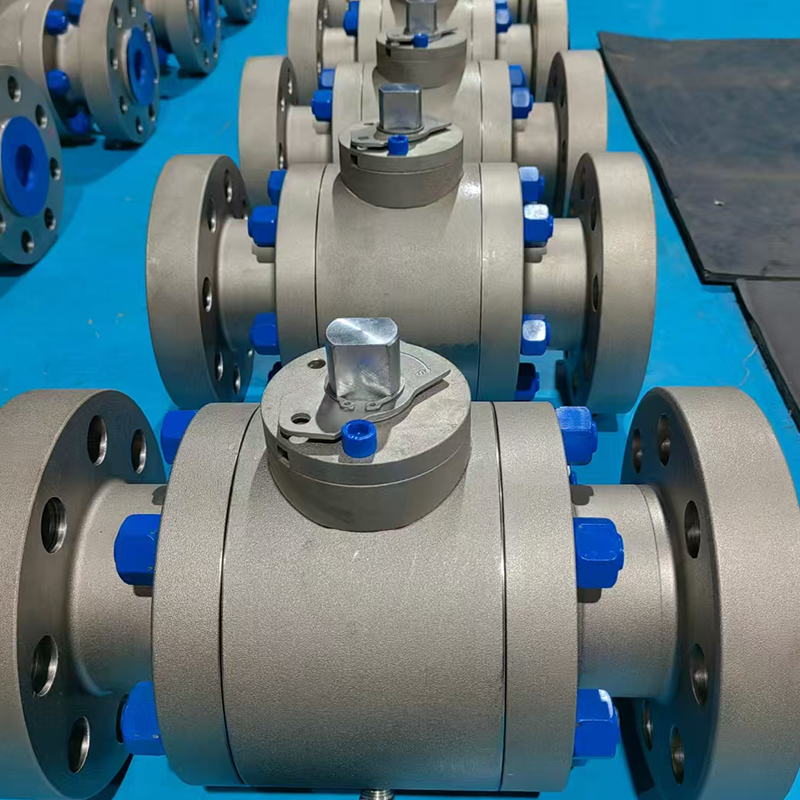

The Floating Ball Valve is a widely adopted flow control solution for medium pressure, general-purpose pipelines, offering a cost-effective and compact alternative to trunnion-mounted designs. Its simple structure, excellent shut-off capability, and tight sealing under pressure make it a go-to option in oil & gas, chemical, HVAC, water treatment, and OEM system environments.
Who This Product Is For:
| User | User Profile | Key Priorities |
| Plant Maintenance Manager | Oversees standard fluid systems with regular maintenance routines | Simple Structure, Easy Replacement, Leak Prevention |
| Procurement Engineer | Manages sourcing for mid-sized or budget-sensitive projects | Competitive Pricing, Quick Delivery, International Standards |
| Automation Engineer | Works on light-to-medium automation tasks | Low Torque, Manual/Electric/Pneumatic Compatibility |
| OEM Manufacturer | Integrates valves into packaged units or skid systems | Compact Size, Modular Fit, Scalable Production |
Key Features & Benefits:
Floating Ball Design
The ball is held in place by the valve seats, allowing it to "float" slightly downstream to ensure tight sealing with medium pressure.
Tight Shut-Off
When pressure is applied, the floating ball presses against the downstream seat to achieve a bubble-tight seal.
Simple, Compact Construction
Fewer components = easy maintenance, cost-efficient replacement, and lower inventory pressure.
Wide Compatibility with Actuators
Can be manually operated or integrated with electric or pneumatic actuators for automated systems.
Broad Material Options
Available in stainless steel, carbon steel, brass, PVC, etc., to suit various working media.
Fire-Safe & Anti-Static Design (Optional)
Enhanced safety for gas and flammable fluid systems.
Technical Specifications
| Parameter | Range |
| Size | ½” to 12” (DN15–DN300) |
| Pressure Rating | Class 150 ~ 600 / PN10 ~ PN100 |
| Temperature | -29°C to 200°C (depending on material) |
| Connection Types | Threaded / Flanged / Welded / Socket / Wafer |
| Body Materials | SS304, SS316, WCB, Brass, PVC, etc. |
| Seat Materials | PTFE, RPTFE, PEEK, Metal-to-Metal |
Product Code Example
FBV-FL-150LB-SS316-2IN
(Floating Ball Valve, Class 150, SS316, 2 Inch, Flanged Ends)
Typical Applications：
Oil & Gas Distribution – Flow isolation in upstream and midstream pipelines
Chemical & Water Systems – Clean fluid transfer, general shut-off
HVAC & Automation – Flow balancing in building or industrial systems
OEM Equipment – Integrated into skids, pumps, or compact valve stations
General Industry – Ideal for process systems, air, water, gas lines
Why Choose Our Floating Ball Valves?
Exported to 40+ countries with full API, ISO, CE certifications
Flexible production: OEM/ODM support, fast sample delivery
Full technical documentation, 3D models, and after-sales assistance
Trusted by OEMs, integrators, and mid-sized industrial operators
Ready to Specify Your Valve?
Request a Custom Quote Within 24 Hours
For more details about Zhejiang Yushun Valve Co., Ltd., please contact us:
