The Cryogenic Ball Valve is designed to operate in ultra-low temperatures—down to -196°C (-321°F)—for applications such as LNG, liquid oxygen, nitrogen, ethylene, and hydrogen. This valve ensures tight shutoff, anti-leakage, and material stability under cryogenic conditions, making it essential in gas processing, energy transport, and scientific storage systems.
Who Uses Cryogenic Valves?
| User | User Profile | Key Priorities |
| LNG Plant Engineer | Operates liquefaction and vaporization systems | Leak-Proof Design, Thermal Stability |
| Gas Equipment OEM | Integrates valves into cryogenic tanks and skids | Compact Structure, Certifiable Quality |
| Procurement for Energy Projects | Buys components for storage, transfer and distribution | Cryo-Tested, Compliant with International Standards |
| Scientific/Medical Facility Manager | Handles storage of LOX, LIN, LHe | Safety, Low Emission, Vacuum Compatibility |
Key Features & Benefits:
Low-Temperature Service (-196°C / -321°F)
Materials and sealing structure designed to withstand extreme cold.

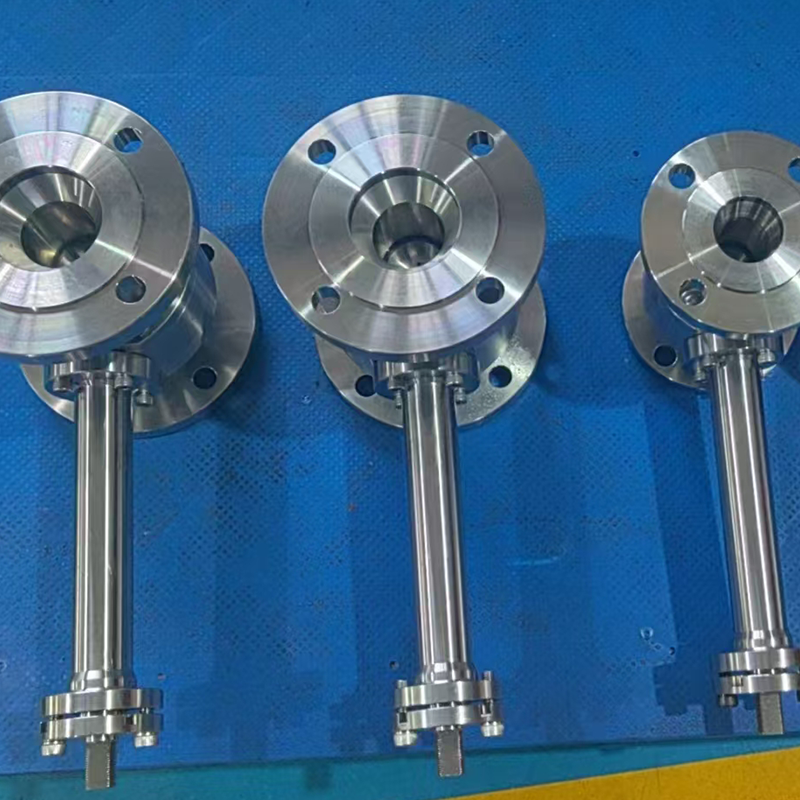

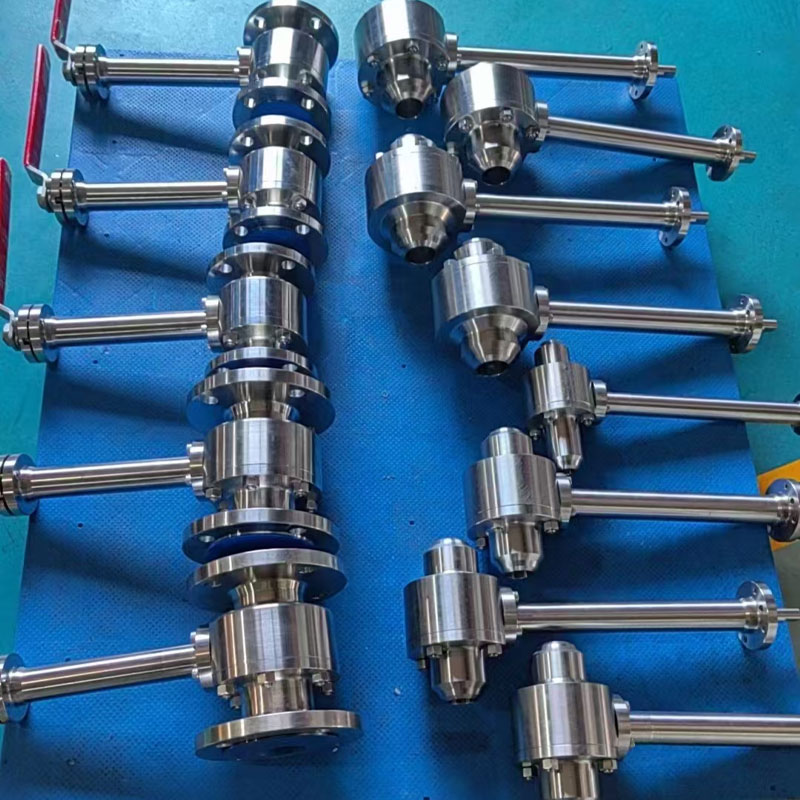

Extended Bonnet Design
Isolates stem packing from cryogenic fluid, reducing thermal shock and frost damage.
Blowout-Proof Stem & Anti-Static Device
Ensures safety under sudden pressure surges and low-temperature flow.
Bubble-Tight Shutoff
Seals effectively even at cryogenic temperatures to prevent costly leaks.
100% Cryogenic Testing
Valves are tested in accordance with BS 6364 / ISO 28921 to simulate real-world low-temperature conditions.
Actuation-Ready
Compatible with pneumatic, electric, and manual operators.
Technical Specifications
| Parameter | Specification |
| Size Range | ½” ~ 24” (DN15 ~ DN600) |
| Pressure Rating | Class 150 ~ 900 / PN16 ~ PN160 |
| Temperature Range | -196°C to +80°C |
| Body Materials | SS304 / SS316 / CF8M / Duplex / Aluminum Bronze |
| Seat Materials | PTFE, PCTFE, PEEK, Metal Seat (Optional) |
| Connection Type | Flanged, Butt Weld, Socket Weld, Threaded |
| Standards | API 6D, BS 6364, ISO 28921, ASME B16.34, CE, SIL |
Sample Product Code
CBV-CL300-EXTBONNET-SS316-6IN
(Cryogenic Ball Valve, Class 300, Extended Bonnet, SS316, 6 Inch)
Application Scenarios：
LNG Plants & Terminals – Liquefaction lines, storage tanks, vaporizer units
Air Separation Units (ASU) – LIN, LOX, LAR production & transport
Hydrogen & Helium Systems – Scientific labs, aerospace fuel handling
Cryogenic Transportation – Skid systems, vacuum insulated pipelines
Medical Gas Storage – Hospital-grade oxygen and nitrogen systems
Why Choose Our Cryogenic Ball Valves?
Designed for Ultra-Low Temperatures
Each valve is thermally treated and assembled in a clean room for cryogenic use.
Global Trust
Widely used in LNG stations, ASUs, and cryogenic transportation projects in Europe, Southeast Asia, and the Middle East.
Reliable Delivery & Engineering Support
We provide 3D drawings, FAT, MTC, cryo-test reports, and customized actuation options.
