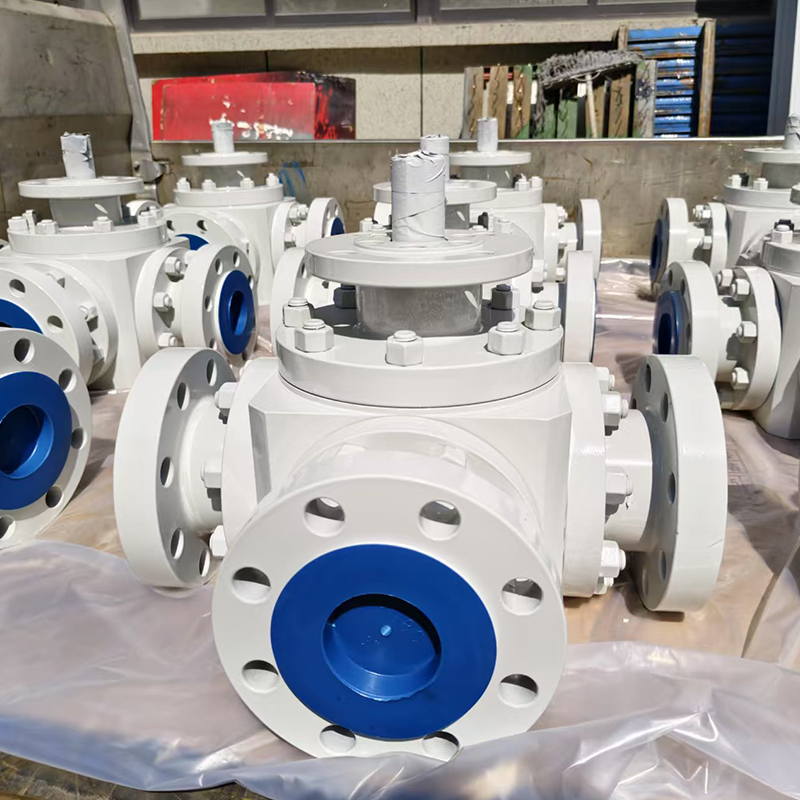

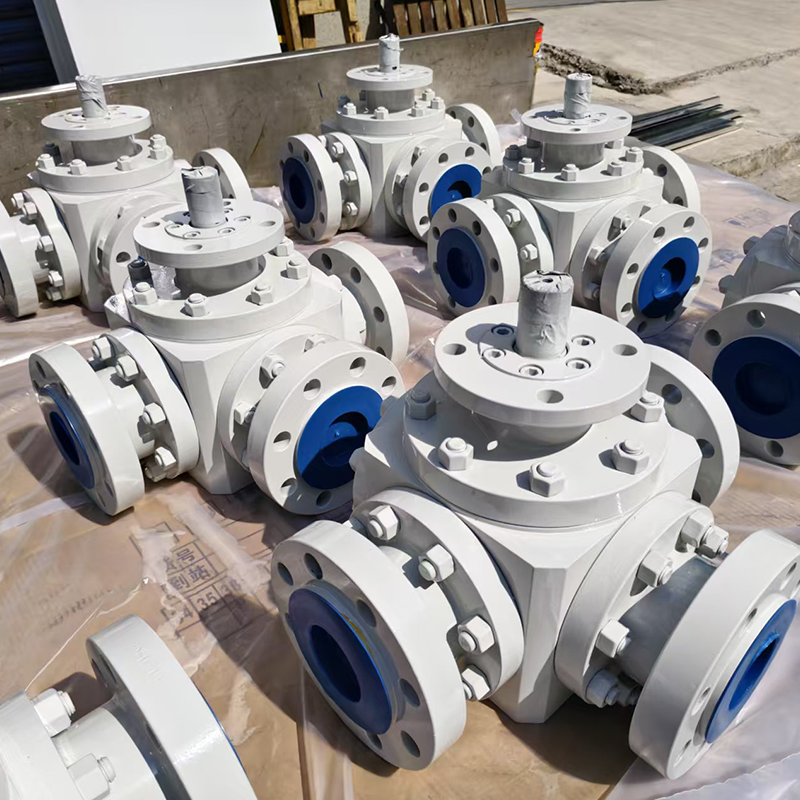

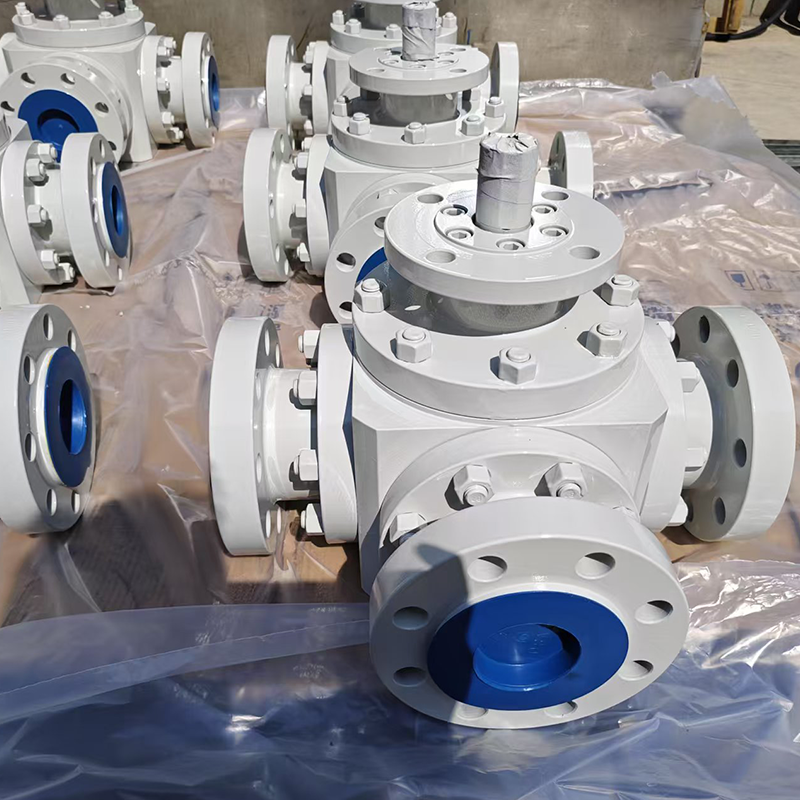

The Three-Way Ball Valve offers precise flow switching, diverting, and mixing in a single valve body. With T-port or L-port flow paths, it enables multi-directional flow control in pipelines where space-saving, operational efficiency, and flow routing are critical. This valve is widely used in chemical processing, food & beverage, water systems, HVAC, and automation skids.
Who Uses Three-Way Ball Valves?
| User | User Profile | Key Priorities |
| Automation Engineer | Designs control logic with multi-directional flows | Flexible Port Configuration, Actuation Compatibility |
| OEM Manufacturer | Integrates valves into modular skid systems | Compact Design, Easy Maintenance, Scalability |
| Process Engineer | Controls multiple fluids or directions in production lines | Mixing/Diverting Capability, Reliable Sealing |
| Maintenance Technician | Handles valve inspection and replacement | Simple Structure, Quick Replacement, Cost Efficiency |
Key Features & Advantages:
T-Port & L-Port Configurations
L-Port: For flow switching between two outlets
T-Port: For diverting, mixing, or shutoff among three lines
Multi-Way Flow Control in One Valve
Reduces pipe connections, space usage, and valve count.
Blowout-Proof Stem & Full Bore Design
Ensures flow efficiency and safety under working pressure.
Supports Automation
Can be equipped with electric, pneumatic, or manual actuators.
Available in Various Connection Types
Flanged, threaded, welded, tri-clamp, or union ends depending on application.
Technical Specifications
| Parameter | Specification |
| Port Configuration | T-Port or L-Port |
| Size Range | ½” ~ 12” (DN15 ~ DN300) |
| Pressure Rating | PN16 ~ PN100 / Class 150 ~ 600 |
| Body Materials | SS304, SS316, WCB, Brass, PVC, etc. |
| Seat Materials | PTFE, RPTFE, PEEK, Metal Seated (optional) |
| Connection Types | Flanged, Threaded (NPT/BSP), Socket Weld, Tri-Clamp |
| Standards | ISO 5211, ASME B16.34, CE, FDA (for sanitary models) |
Sample Product Code
3WBV-T-CL150-SS316-2IN
(Three-Way Ball Valve, T-Port, Class 150, SS316, 2 Inch)
Typical Applications：
Chemical Processing – Flow direction control, material mixing
Food & Beverage – Clean mixing, CIP diversion
Water Treatment Systems – Filter switching, dual-tank routing
HVAC Systems – Hot/cold switching, zone control
Pharmaceutical & Lab Equipment – Fluid sampling and switching
Automation Skids / PLC Systems – Modular flow routing
Why Choose Our Three-Way Ball Valves?
Versatile Flow Configurations
Handle multiple routing tasks with a single valve.
Flexible Mounting & Compact Structure
Ideal for limited space, skid systems, or mobile applications.
OEM & Automation-Friendly
Standard ISO mounting pad, full actuator compatibility.
Proven in Global Projects
Used in systems across Europe, Middle East, South America, and Asia-Pacific.
Let's Build Your Flow Logic Together
Request a Custom Quote Within 24 Hours
